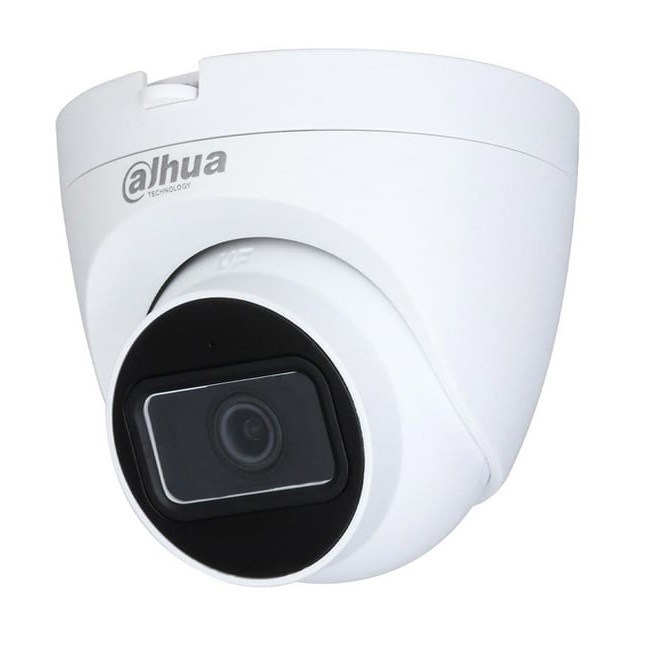

DAHUA HAC-HDW1200TRQ-0280B 2MP 2.8MM CMOS 1080P GECE GÖRÜŞLÜ TVI/AHD /CVI/CVBS DOME KAMERA

· Max. 30 fps@1080p.
· Smart IR Illumination.
· 30 m illumination distance.
· Super Adapt.
· Quick-to-install eyeball saves installation time.
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP50, 12 VDC.

Camera
Image Sensor : 2 MP CMOS
Max. Resolution :1920 (H) × 1080 (V)
Scanning System : Progressive
Electronic Shutter Speed  : PAL: 1/25 s–1/100000 s , NTSC: 1/30 s–1/100000 s
Min. Illumination :  0.01 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio :  >65 dB
Illumination Distance :  30 m (98.43 ft)
Illuminator On/Off Control :  Auto
Illuminator Number :  2 (IR light)
Angle Adjustment :
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens
Lens Type :  Fixed-focal
Lens Mount :  M12
Focal Length :  2.8 mm; 3.6 mm
Max. Aperture :  F2.0
Field of View : 2.8 mm: H: 102°; V: 60°; D: 129° , 3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control :  Fixed
Close Focus Distance :  2.8 mm: 0.5 m (1.64 ft), 3.6 mm: 0.7 m (2.30 ft)

Video
Video Frame Rate :
CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution :  1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night  : Auto(ICR)/Color/B/W
BLC  : BLC; HLC; DWDR
WDR :  DWDR
White Balance :  Auto; Area white balance

Gain Control :  Auto
Noise Reduction :  3D NR
Illumination Mode :  Smart IR
Mirror :  Yes
Privacy Masking  : Off/On (8 areas, rectangle)


Certification
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B


Port
Video Output :  Video output choices of CVI/TVI/AHD/CVBS by one BNC port


Power
Power Supply :  12 VDC ± 30%
Power Consumption :  Max 2.7 W (12 VDC, IR on)


Environment
Operating Temperature :  –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity :  <95% (RH), non-condensing
Storage Temperature  : –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity :  <95% (RH), non-condensing


Structure
Casing Material :  Plastic
Product Dimensions :  Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")
Net Weight  : 0.14 kg (0.31 lb)
Gross Weight  : 0.25 kg (0.55 lb)
Installation :  Wall mount; ceiling mount; vertical pole mount
