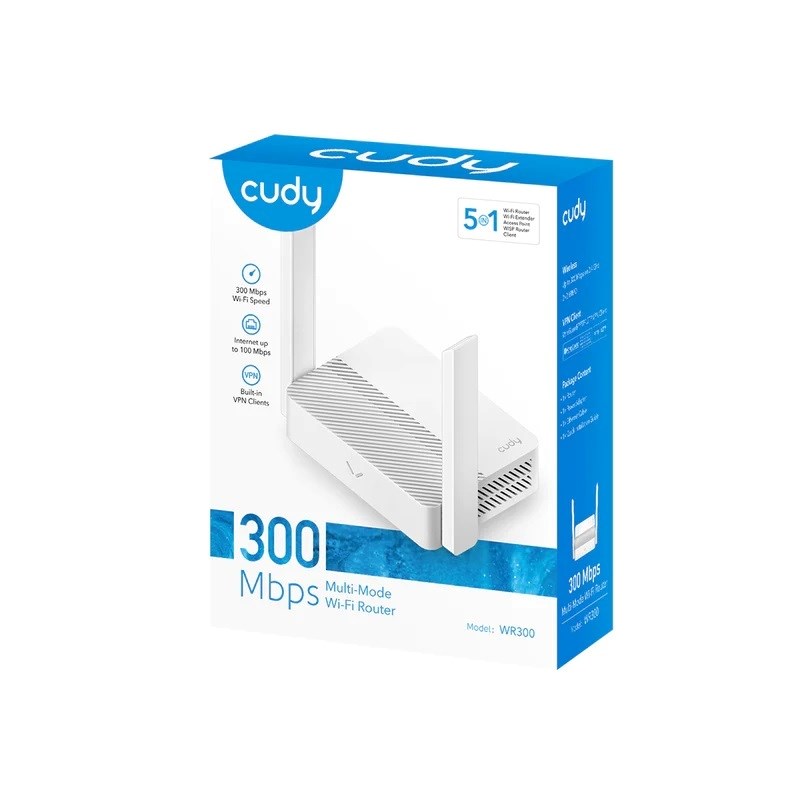

Cudy WR300 N300 Wi-Fi Router

WR300

Chipset

MT7628

CPU Details

580 MHz Single-Core, MIPS24KEC

Flash/ROM

8 MB (64 Mbit ) NOR

DDR/RAM

64 MB (512 Mbit) DDR2

2.4 GHz Wi-Fi Speed

300 Mbps

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Fixed

Range Performance

Max: 130 m (427 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')

10/100 Mbps RJ45 Ports

4

Ethernet Notes

1× WAN port, the rest are LAN ports

LED

System

Physical Buttons

WPS Button

Reset Button

Power Input

DC Jack

Power Methods

DC

DC

5V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 5V 1A DC

Wi-Fi Standards

Wi-Fi 4

Max Wi-Fi Modulation

64-QAM

Max Capacity

64

Recommended Client Upper Limit

30

Max Wi-Fi Channel Width

40 MHz

Wi-Fi Security

WPA/WPA2/WPA3

Guest Network

2.4 GHz

WPS

True

Operation Modes

Wi-Fi Router

Access Point

Range Extender

WISP

Client

Mesh

Cudy Mesh

Mesh Backhaul

Wireless Backhaul

Wired Backhaul

WAN Mode

DHCP

Static IP

PPPOE

Internet Failover Sequence

WAN

WISP

QoS

Per-User Rate Limiting

DHCP

Address Reservation

DHCP Client List

Server

IP Versions

IPv4/IPv6

IPv6 Protocols

Relay

Dynamic (SLAAC/DHCPv6)

Staic (Fixed IP)

Passthrough

464XLAT

MAP-E

DS-Lite

IPTV/VLAN

Bridge

Tag VLAN

TTL Customization

Extend

Spoof

Custom

IGMP

IGMP Proxy

IGMP Snooping

Forwarding

Port Forwarding

Port Triggering

UPnP

DMZ

Firewall

SPI Firewall

DoS Protection

Block PING

Application Layer Gateway

IPSec Passthrough

L2TP Passthrough

PPTP Passthrough

FTP Passthrough

TFTP Passthrough

H323 Passthrough

SIP Passthrough

RTSP Passthrough
