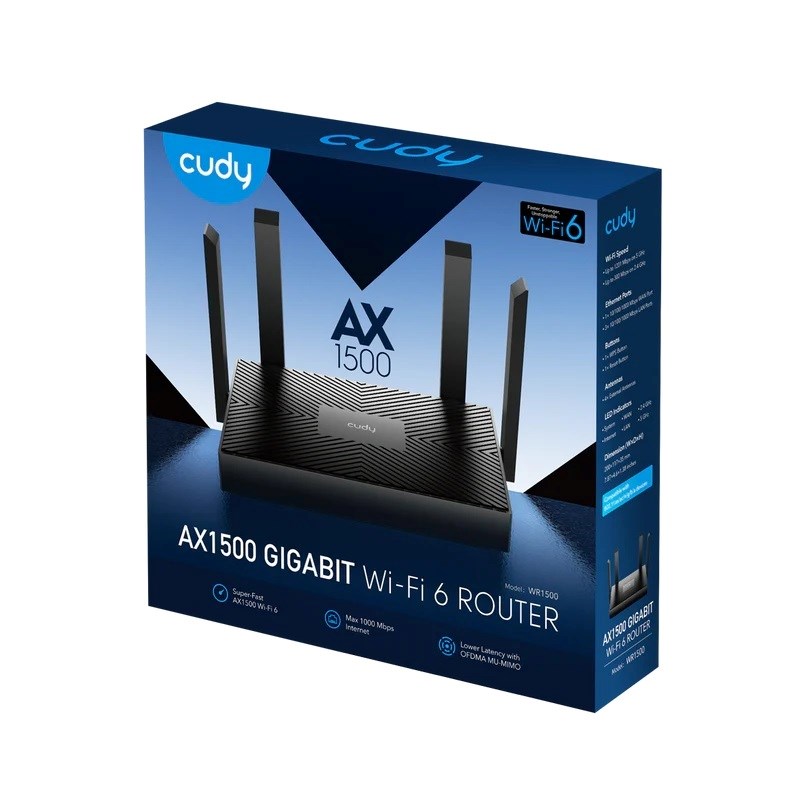

Cudy WR1500 AX1500 Wi-Fi 6 Router

WR1500

Chipset

RTL8197H

CPU Details

1 GHz Single-Core CPU

Flash/ROM

16 MB (128 Mbit) NOR

DDR/RAM

128 MB (1 Gbit) DDR3

5 GHz Wi-Fi Speed

1201 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

4× Fixed

Beamforming

True

Range Performance

Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Gigabit RJ45 Ports

4

Ethernet Notes

1× WAN port, the rest are LAN ports

LED

System

Physical Buttons

WPS Button

Reset Button

Power Input

DC Jack

Power Methods

DC

DC

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

10W

Wi-Fi Standards

Wi-Fi 5

Max Wi-Fi Modulation

256-QAM

Wi-Fi Efficiency

MU-MIMO

Wi-Fi Efficiency Note

MU-MIMO available on 5 GHz

Max Capacity

128

Recommended Client Upper Limit

60

Max Wi-Fi Channel Width

80 MHz

Wi-Fi Security

WPA/WPA2

WPS

True

Operation Modes

Wi-Fi Router

Access Point

Mesh

EasyMesh R2

Mesh Backhaul

Wireless Backhaul

Wired Backhaul

WAN Mode

DHCP

Static IP

PPPOE

PPTP

L2TP

QoS

Per-User Rate Limiting

DHCP

Server

IP Versions

IPv4

IPTV/VLAN

Tag VLAN

IGMP

IGMP Proxy

Forwarding

Port Forwarding

UPnP

DMZ

Firewall

SPI Firewall

Block PING

VPN Client

PPTP

L2TP

DNS Options

Manual DNS

Online Detection

True

All Devices Management

MAC Filter

IP/MAC Binding

Content Management

Domain Filter

IP Filter

Port Filter

Local Control Method

Config Web Page

Remote Control Method

TR069/TR098/TR111/TR181

Config Page via HTTP

Firmware Upgrade

Local Update

Reliability

Backup and Restore

Languages

English

Portuguese

Russian

Spanish

Ukrainian
