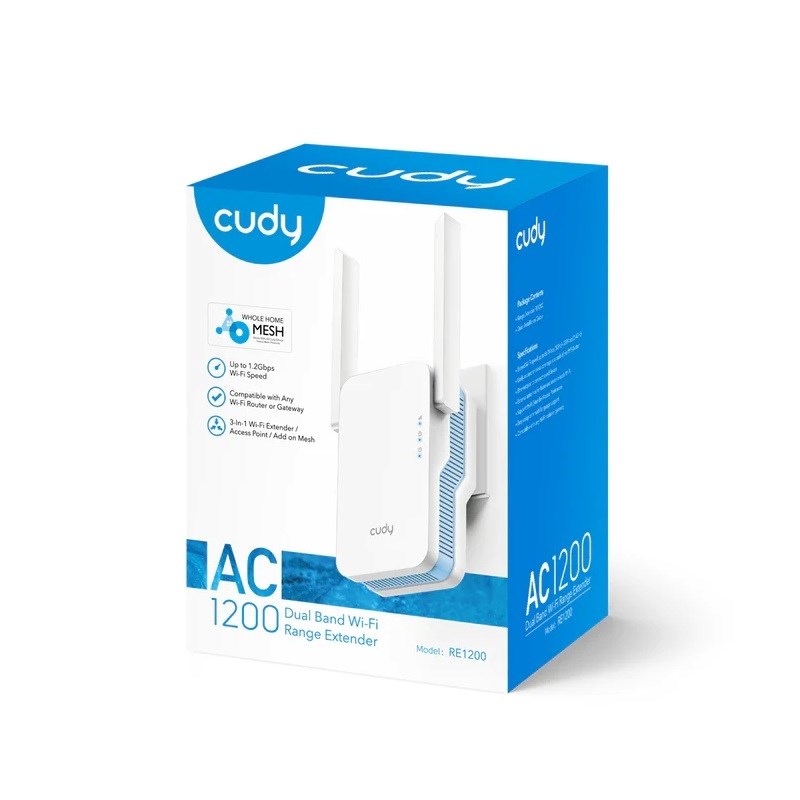

Cudy RE1200 AC1200 Mesh Wi-Fi Range Extender

RE1200

Chipset

MT7628A+MT7613B

CPU Details

580 MHZ Single-Core, MIPS24KEC

Flash/ROM

8 MB (64 Mbit ) NOR

DDR/RAM

64 MB (512 Mbit) DDR2

5 GHz Wi-Fi Speed

867 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Fixed

FEM or PA/LNA

5 GHz: 2× Internal

2.4 GHz: 2× Internal

Range Performance

Max: 150 m (492 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

10/100 Mbps RJ45 Ports

1

LED

Signal Strength

WPS

Power

Physical Buttons

WPS Button

Reset Button

Power Input

AC Plug

Power Input Note

EU, US, UK plug are available on corresponding region versions

Power Methods

AC

AC

110V ~ 220V

Wi-Fi Standards

Wi-Fi 5

Max Wi-Fi Modulation

256-QAM

Wi-Fi Efficiency

MU-MIMO

Wi-Fi Efficiency Note

MU-MIMO available on 5 GHz

Max Capacity

128

Recommended Client Upper Limit

30

Max Wi-Fi Channel Width

80 MHz

Wi-Fi Security

WPA-PSK (WPA/WPA2)

WPS

true

Operation Modes

Access Point

Range Extender

Mesh

Cudy Mesh Satellite

Mesh Backhaul

Wireless Backhaul

Wired Backhaul

Multi-Band Backhaul

true

LED Control

true

Local Control Method

Config Web Page

App Control

Remote Control Method

App Control

Firmware Upgrade

Local Update

App (Over the Air)

Online Update

Reliability

Timed Reboot

Backup and Restore

Panel

Connected Devices, Host Network Status, Wi-Fi Status, LAN Status, System Version

Charts

Mesh Topology

Diagnostic Tools

Ping

Traceroute

NSLookup

System Log
