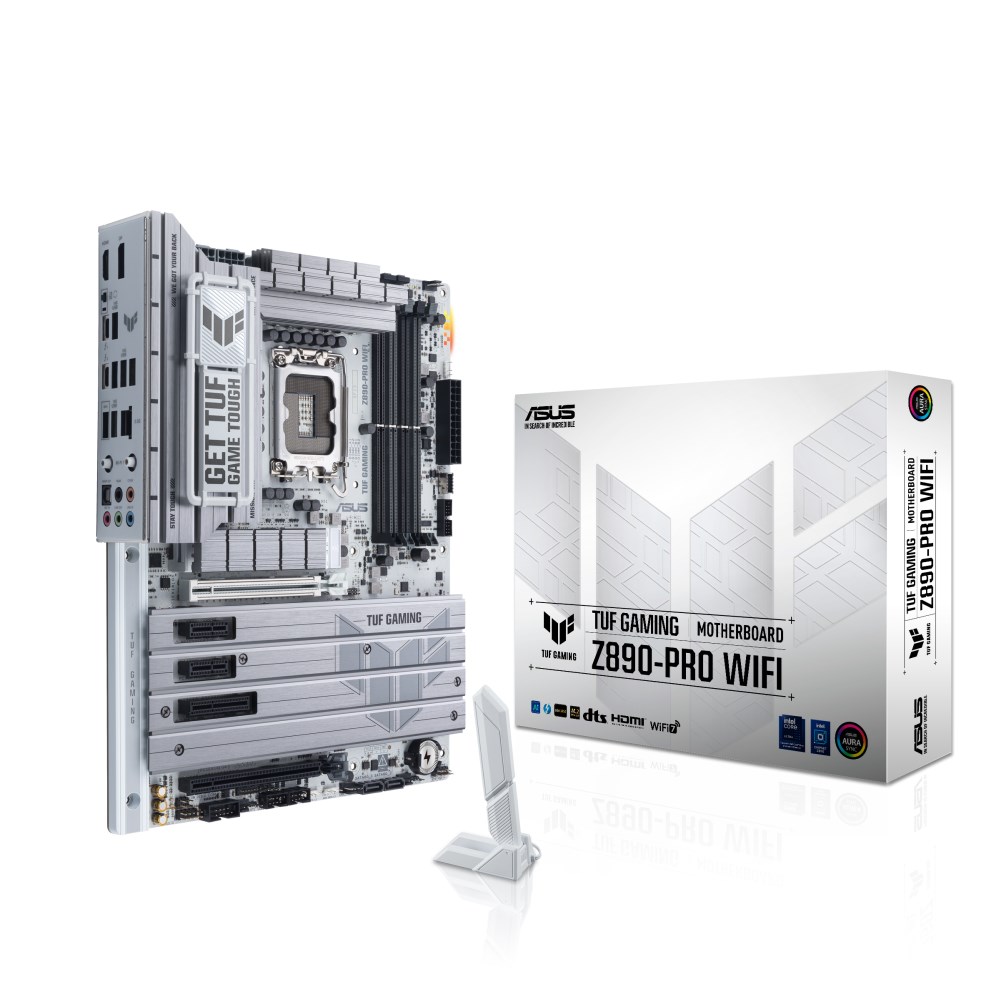

Asus TUF GAMING Z890-PRO WIFI DDR5 Intel Z890 Soket 1851 ATX Anakart

Model:

TUF GAMING Z890-PRO WIFI

CPU:

Support Intel^® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

Intel^® Z890 Chipset

Memory:

4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel^® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

1 x DisplayPort**
1 x HDMI™ port***
2 x Intel^® Thunderbolt™ 4 ports (USB Type-C^®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM 4  mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, Only one USB Type-C^® port supports up to UHBR20 at a time.
****** VGA resolution support depends on processors' or graphic cards' resolution.
******* While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots:

Intel^® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel^® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage:

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel^® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

Ethernet:

1 x Intel^® 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth^® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

Rear USB (Total 8 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C^®)
6 x USB 10Gbps ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C^® with up to 30W PD/PPS Fast-charge )*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports:

2 x Thunderbolt™ 4 USB Type-C^® ports
6 x USB 10Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

Internal I/O Connectors:

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C^® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

Special Features:

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0

Software Features:

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System:

Windows 11  (22H2 & later)

Form Factor:

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

EAN Numarası: 4711387762639
