Asus TUF GAMING B650-E WIFI DDR5 AMD B650 Soket AM5 ATX Anakart

Model:

TUF GAMING B650-E WIFI

CPU:

AM5 Socket for AMD Ryzen™ Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset:

AMD B650

Memory:

4 x DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered  Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics:

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots:

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

Ethernet:

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports:

2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors:

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function

Special Features:

ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED

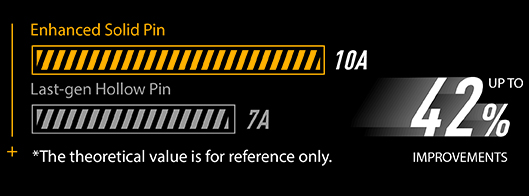

ProCool
Pre-mounted I/O shield
SafeDIMM
Aura Sync
Aura RGB header(s)
Addressable Gen 2 header(s)

Software Features:

ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Operating System:

Windows® 11
Windows® 10 64-bit

Form Factor:

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

EAN Numarası: 4711387423073
