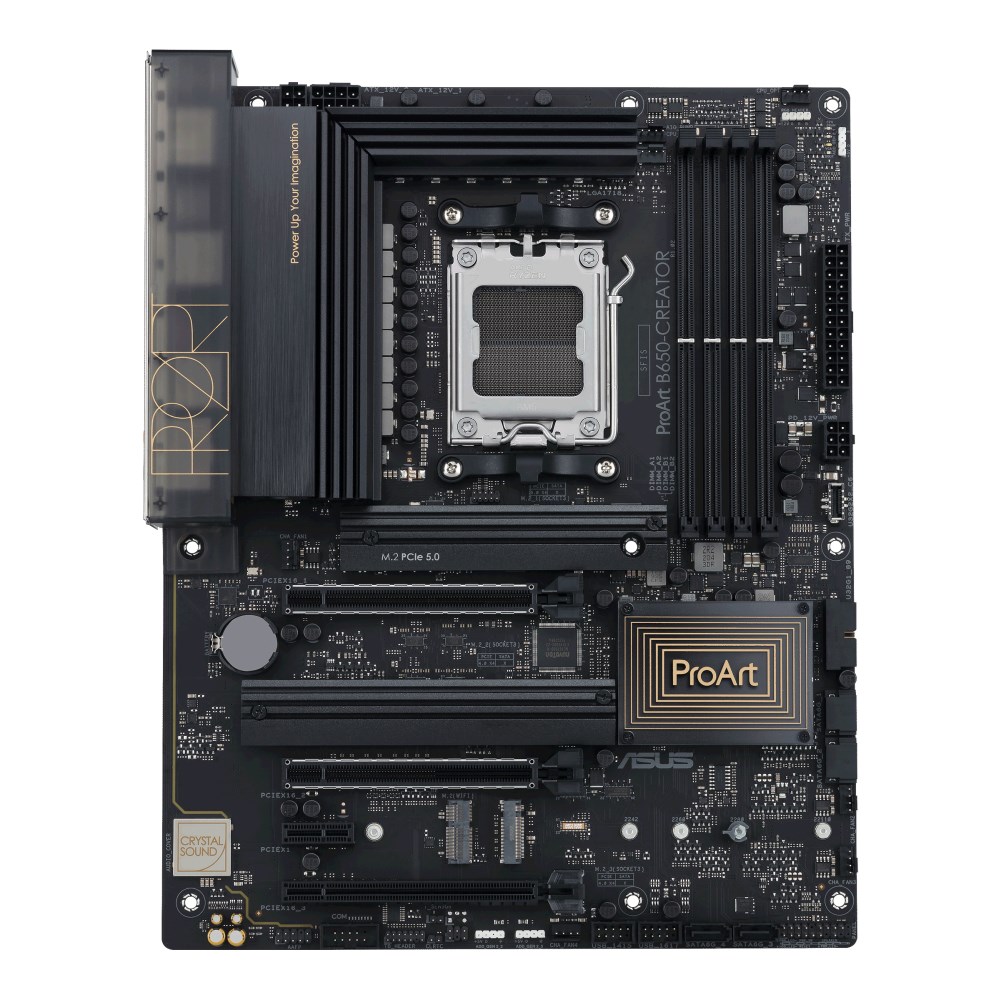

Asus ProArt B650-CREATOR DDR5 AMD B650 Soket AM5 ATX Anakart

Model:

ProArt B650-CREATOR

CPU:

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset:

AMD B650

Memory:

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Graphics:

1 x HDMI^® port**
1 x USB Type-C^® port supports DisplayPort output***
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.

Expansion Slots:

AMD Ryzen™ 7000 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.

Ethernet:

1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth:

M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately.

USB:

Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2 port (1 x USB Type-C^®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^® with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback"
Audio Features
Power pre-regulator reduces power input noise to ensure consistent performance
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit

Back Panel I/O Ports:

1 x USB 3.2 Gen 2 port (1 x USB Type-C^®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI^® port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button

Internal I/O Connectors:

I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

Special Features:

ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsinks
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
AURA Sync
Aura RGB header
Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
24/7 Reliability
Overcurrent Protection
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
Support: up to 60W charging*
Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Software Features:

ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
IT Management software supported
ASUS Control Center Express(ACCE)
CreationFirst
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System:

Windows^® 11 64-bit, Windows^® 10 64-bit

Form Factor:

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

EAN Numarası: 4711081988090
