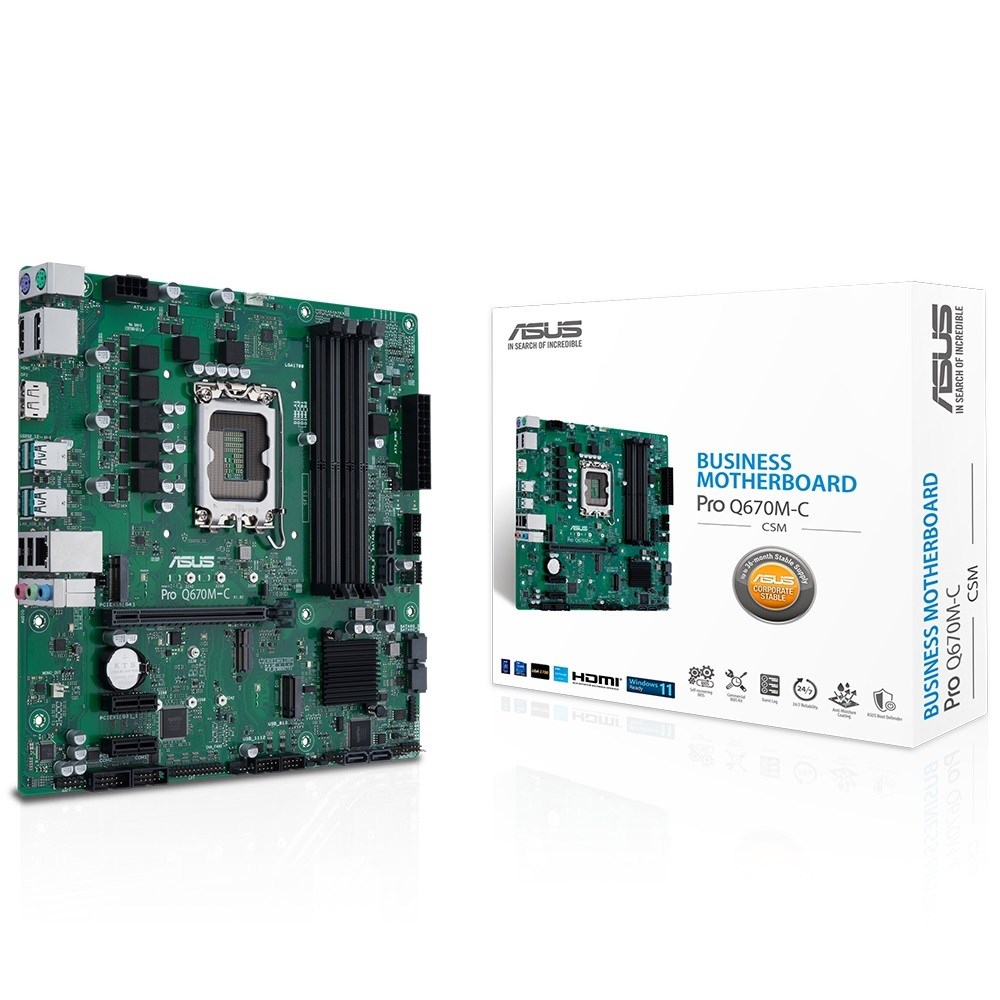

Asus PRO Q670M-C-CSM DDR5 Intel Q670 Soket 1700 Micro-ATX Anakart

Model:

Pro Q670M-C-CSM

Yenilikler ve Güncellemeler:

2024/08/12: Intel Core 13. ve 14. Nesil masaüstü işlemcilerin kararlılığını artıran Intel mikro kodlu (0x129) yeni BIOS artık mevcut. En son BIOS güncellemeleri için lütfen destek sitesini ziyaret edin.

İşlemci:

Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Yonga Seti:

Intel® Q670 Chipset

Bellek:

 4 x DIMM, Max. 192GB, Support for DDR5 5600/5400/5200/5000/4800 memory modules*

Dual Channel Memory Architecture:

Supports Intel® Extreme Memory Profile (XMP)
Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM memory modules
Optimem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Grafikler:

2 x DisplayPort**

1 x HDMI®***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Genişleme Yuvaları:

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)*

1 x PCIe 4.0/3.0 x16 slot

Intel^® Q670 Chipset

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.

Depolama:

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)*

M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode)

Intel^® Q670 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet:

1 x Intel® 1Gb Ethernet
ASUS LANGuard

Kablosuz & Bluetooth:

M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.

USB:

Rear USB:Total 6 ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Ses:

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Arka Panel Giriş/Çıkış Bağlantı Noktaları:

4 x USB 3.2 Gen 2 ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMI® port

3 x Audio jacks

1 x Intel® 1Gb Ethernet

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Dahili Giriş/Çıkış Konnektörleri:

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x Speaker header

1 x 10-1 System Panel header

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x Speaker header

1 x 10-1 System Panel header

Ayırt Edici Özellikler:

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- ASUS Boot Defender

- Q-LED Core

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

TPM 2.0 IC onboard

Yazılım Özellikleri:

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS:

256 Mb Flash ROM

Yönetilebilirlik:

WOL by PME, PXE

İşletim Sistemi:

Windows 11, Windows 10 64-bit

Form Faktörü:

micro-ATX
24.4cm x 24.4cm

EAN Numarası: 0000210270931
