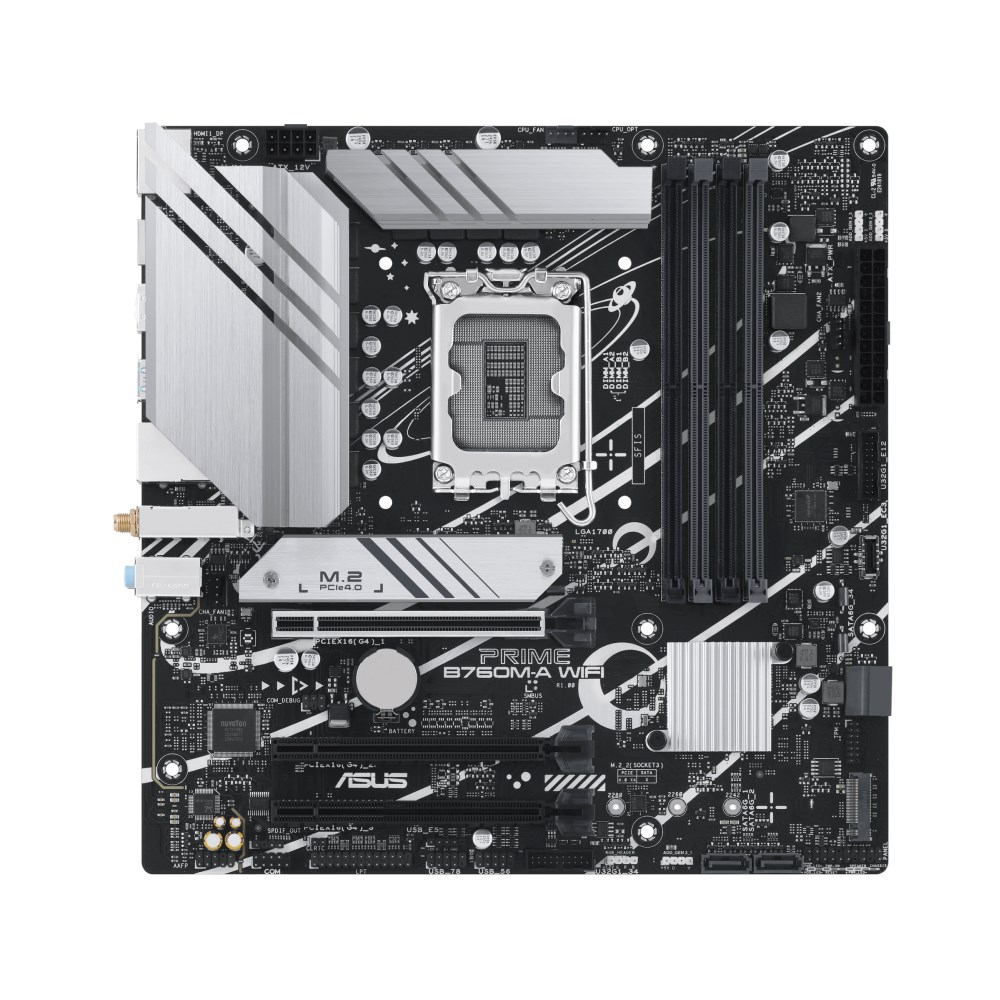

Asus PRIME B760M-A WIFI DDR5 Intel B760 Soket 1700 mATX Anakart

CPU:

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

Intel^® B760 Chipset

Memory:

4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

1 x DisplayPort**
2 x HDMI^TM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^TM 2.1.

Expansion Slots:

Intel^® 13^th & 12^th Gen Processors
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet:

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth:

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports:

2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI^TM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

Special Features:

ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
Aura Sync
Aura RGB header
Addressable Gen 2 headers

Software Features:

ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
AI Suite 3
Digi+ VRM
PC Cleaner
ASUS CPU-Z
MyAsus
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System:

Windows^® 11, Windows^® 10 64-bit

Form Factor:

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
