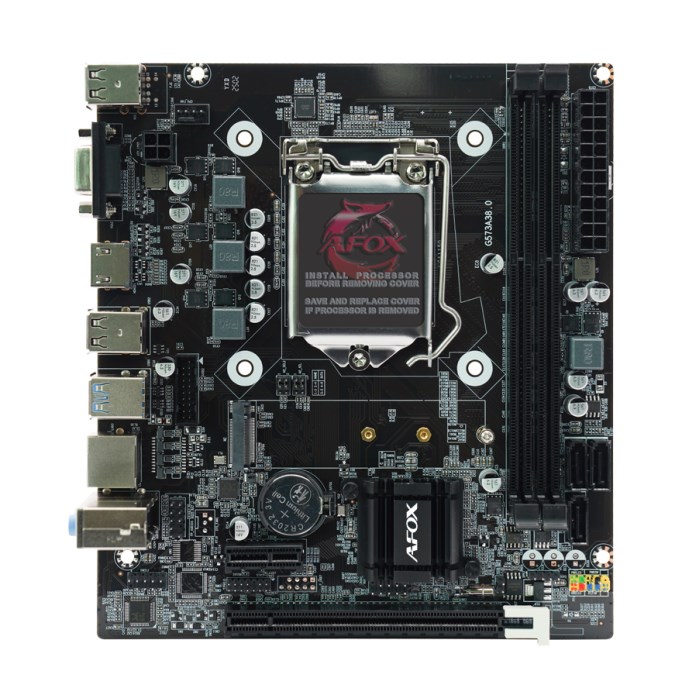

Afox IH81D3-MA2-V2 DDR3 Intel H81 Soket 1150 Micro-ATX Anakart

Platform

INTEL Socket 1150

Model Name

IH81D3-MA2-V2

Chipset

Intel® H81

CPU Supports

Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 /  Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)

FSB

1066 / 1333 / 1600 / 1860MHz

Memory

Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics

Integrated Graphics Processor

PCI/PCI-E Slots

1 x PCI Express x16 2.0 slot, 1 x PCI Express x1 slot

SATA

3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

IDE

N/A

Audio

Supports 6-channel audio-out

LAN

Realtek RTL8111 Gigabit Ethernet on board

Back Panel I/Os

1 x HDMI Port

1 x D-Sub (VGA) Port

2 x USB 3.0 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port with LED

3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

1 x Front Panel Audio pinheader

1 x TPM

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*19cm)

Mounting

4 mounting holes

Accessories

1 x SATA II cable

1 x I/O Rear Panel

1 x User Manual

1 x Driver CD
