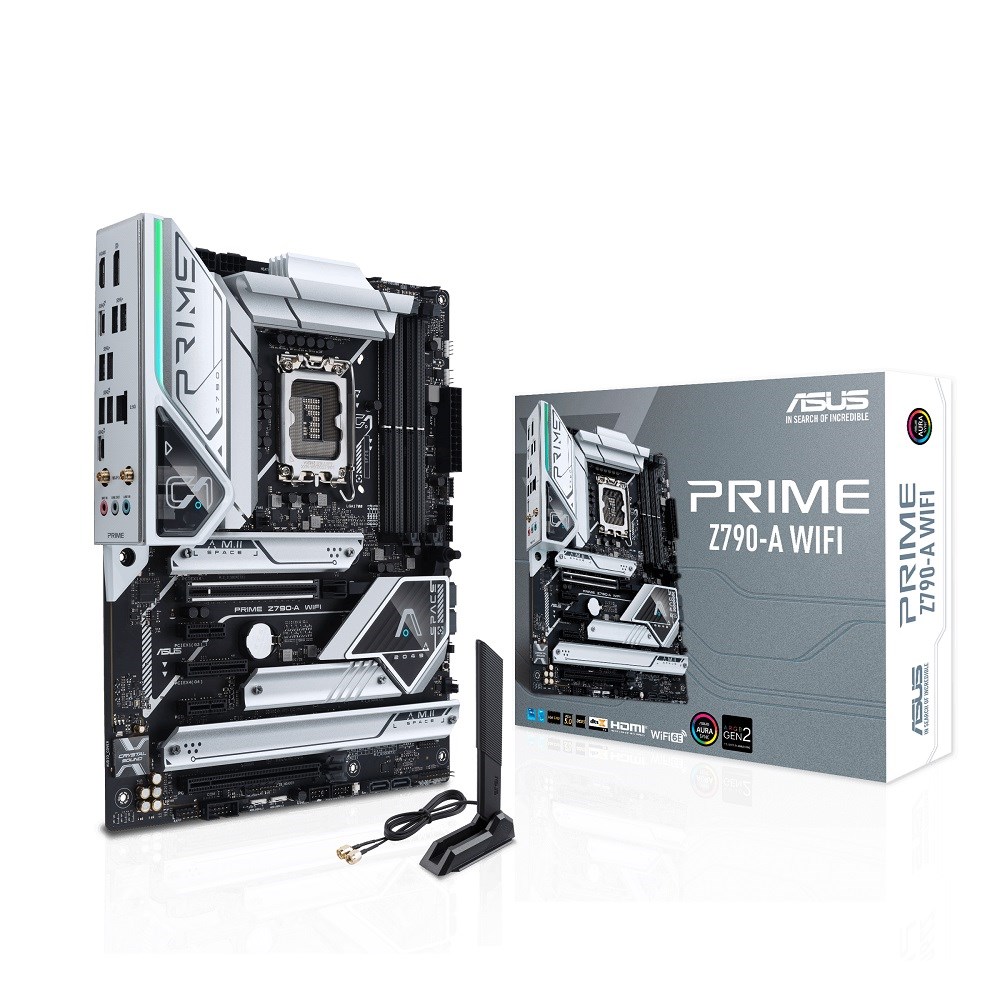

ASUS PRIME Z790-A WIFI DDR5 LGA1700 DP/HDMI M.2 ATX Anakart

CPU:

Intel Socket LGA1700 for 13^th Gen Intel Core^™ Processors & 12^th Gen Intel Core™, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

Intel Z790 Chipset

Memory:

4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots:

Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots

Storage:

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet:

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth:

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback*
Audio Features
Audio Shielding
Power pre-regulator reduces power input noise to ensure consistent performance
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports:

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors:

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x  20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt^™  header

Special Features:

ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
Box Headers
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers

Software Features:

ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
DTS:X Ultra
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
MemTest86

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System:

Windows 11, Windows 10 64-bit

Form Factor:

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

EAN Numarası: 4711081939320
