| Model |
ROG STRIX B450-E GAMING |
| PN |
90MB1070-M0EAY0 |
| EAN |
4718017132879 |
| CPU |
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
* Refer to www.asus.com for CPU support list |
| Yonga Seti |
AMD B450 |
| Bellek |
AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafik |
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Çoklu GPU Desteği |
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports AMD 3-Way CrossFireX™ Technology |
| Genişletme Yuvaları |
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1 |
| Depolama |
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *2
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
2 x SATA 6Gb/s port(s)
AMD Ryzen™ with Radeon™ Vega Graphics Processor : *2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
2 x SATA 6Gb/s port(s)
AMD Athlon™ with Radeon™ Vega Graphics Processors : *2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 |
| LAN |
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology |
| Kablosuz Veri Ağı |
Intel® Wireless-AC 9260
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO |
| Bluetooth |
Bluetooth® 5.0 |
| Ses |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link |
| USB Portları |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s)
AMD B450 chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
| ROG'a Özgü Özellikler |
ROG CPU-Z
Pre-mounted I/O Shield
Overwolf
GameFirst IV
ROG Exclusive Software

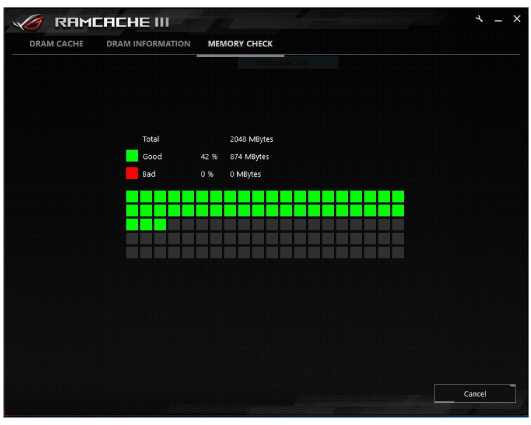

- RAMCache III
- GameFirst V |
| Ayrıcalıklı Özellikler |
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

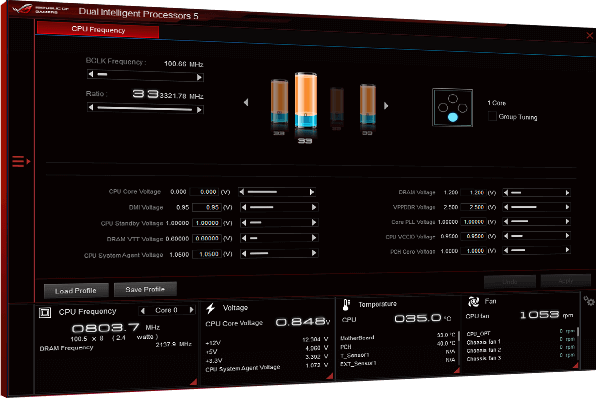

TPU
- Auto Tuning, TurboV, GPU Boost
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Armoury Crate
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP
- featuring system performance tuning for selected applications |
| Arka Giriş/Çıkış Portları |
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s) |
| Dahili Giriş/Çıkış Portları |
1 x Addressable RGB header
2 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s) |
| İşletim Sistemi |
Windows® 10 64-bit
Windows® 7 64-bit *6 |
| Form Faktörü |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
