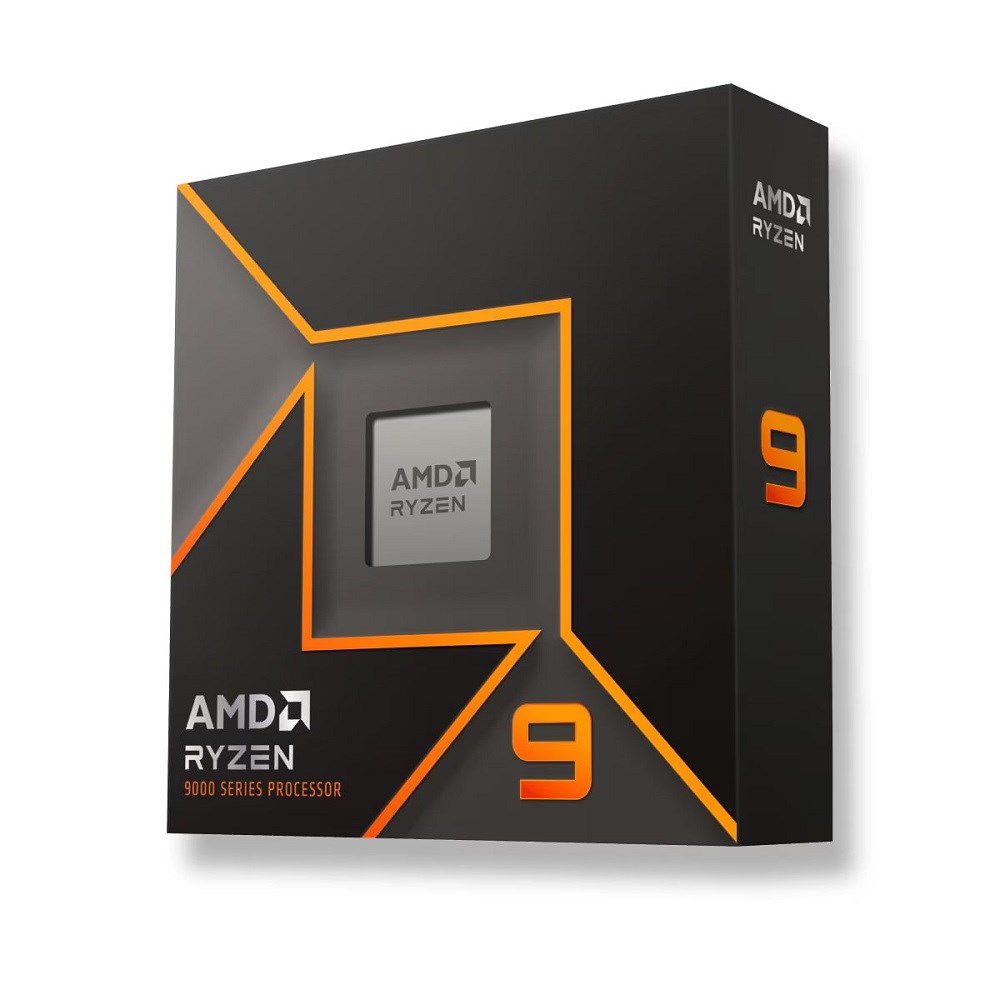

AMD Ryzen 9 9950X 4.30GHz 170W AM5 Fansız (Box) İşlemci

General Specifications

Name : AMD Ryzen™ 9 9950X

Family : Ryzen

Series : Ryzen 9000 Series

Form Factor : Desktops , Boxed Processor

Market Segment : Enthusiast Desktop

AMD PRO Technologies : No

Consumer Use : Yes

Regional Availability : Global

Former Codename : Granite Ridge AM5

Architecture : Zen 5

# of CPU Cores : 16

Multithreading (SMT) : Yes

# of Threads : 32

Max. Boost Clock  : Up to 5.7 GHz

Base Clock  : 4.3 GHz

L1 Cache : 1280 KB

L2 Cache : 16 MB

L3 Cache : 64 MB

Default TDP : 170W

Processor Technology for CPU Cores : TSMC 4nm FinFET

Processor Technology for I/O Die : TSMC 6nm FinFET

Package Die Count : 3

Unlocked for Overclocking  : Yes

AMD EXPO™ Memory Overclocking Technology : Yes

Precision Boost Overdrive : Yes

Curve Optimizer Voltage Offsets  : Yes

AMD Ryzen™ Master Support : Yes

CPU Socket : AM5

Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included

Recommended Cooler : Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax) : 95°C

Launch Date : 08/15/2024

*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports : 4

Native USB 2.0 (480Mbps) Ports : 1

PCI Express® Version : PCIe® 5.0

Native PCIe® Lanes (Total/Usable) : 28 , 24

Additional Usable PCIe Lanes from Motherboard :

X870E 8x Gen4

X870 4x Gen4

X670E 12x Gen4

X670 12x Gen4

B650E 8x Gen4

B650 8x Gen4

NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 192 GB

System Memory Subtype : UDIMM

Max Memory Speed

2x1R DDR5-5600

2x2R DDR5-5600

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support : Yes (Requires mobo support)

Graphics Capabilities

Graphics Model : AMD Radeon™ Graphics

Graphics Core Count : 2

Graphics Frequency :  2200 MHz

USB Type-C® DisplayPort™ Alternate Mode : Yes

Product IDs

Product ID Boxed : 100-100001277WOF

Product ID Tray : 100-000001277

Key Features

Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies
