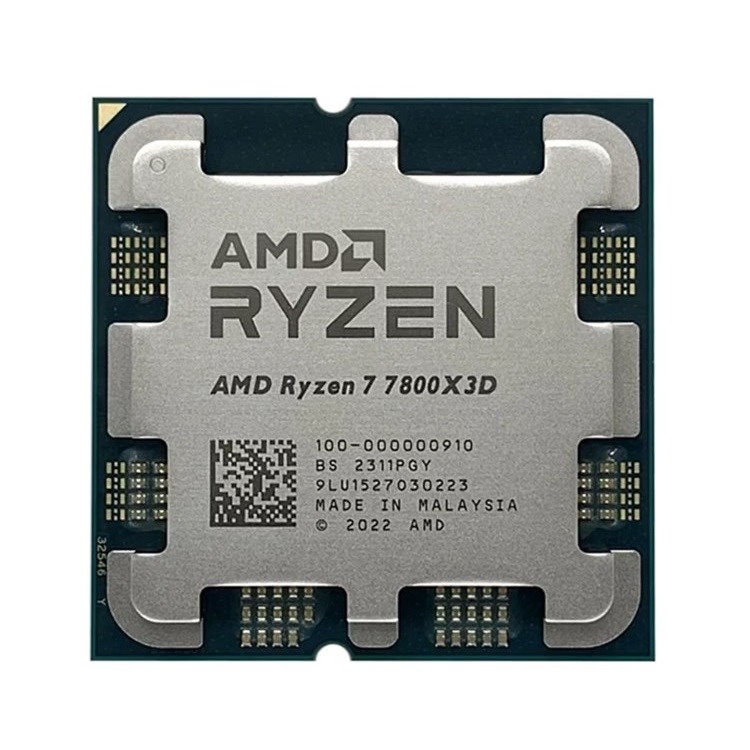

AMD Ryzen 7 7800X3D 4.2GHz AM5 120W Fansız İşlemci (TRAY)

General Specifications

Name : AMD Ryzen™ 7 7800X3D

Family : Ryzen

Series : Ryzen 7000 Series

Market Segment : Enthusiast Desktop

AMD PRO Technologies : No

Regional Availability : Global

Former Codename : Raphael AM5

Processor Architecture : Zen 4

# of CPU Cores : 8

Multithreading (SMT) : Yes

# of Threads : 16

Max. Boost Clock  : Up to 5 GHz

Base Clock  : 4.2 GHz

L1 Cache : 512 KB

L2 Cache : 8 MB

L3 Cache : 96 MB

Default TDP : 120W

Processor Technology for CPU Cores : TSMC 5nm FinFET

Processor Technology for I/O Die : TSMC 6nm FinFET

CPU Compute Die (CCD) Size : 71mm²

I/O Die (IOD) Size : 122mm²

Package Die Count : 2

AMD EXPO™ Memory Overclocking Technology : Yes

Precision Boost Overdrive : Yes

Curve Optimizer Voltage Offsets : Yes

AMD Ryzen™ Master Support : Yes

CPU Socket : AM5

Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax) : 89°C

*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) : 4

Native USB 3.2 Gen 1 (5Gbps) : 0

Native USB 2.0 (480Mbps) : 1

Native SATA Ports : 0

PCI Express® Version : PCIe® 5.0

Native PCIe® Lanes (Total/Usable) : 28 , 24

Additional Usable PCIe Lanes from Motherboard

X670E 12x Gen4

X670 12x Gen4

B650E 8x Gen4

B650 8x Gen4

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 128 GB

System Memory Subtype : UDIMM

Max Memory Speed

2x1R DDR5-5200

2x2R DDR5-5200

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support : Yes (Requires mobo support)

Graphics Capabilities

Graphics Model : AMD Radeon™ Graphics

Graphics Core Count : 2

Graphics Frequency : 2200 MHz

USB Type-C® DisplayPort™ Alternate Mode : Yes

Product IDs

Product ID Tray : 100-000000910
