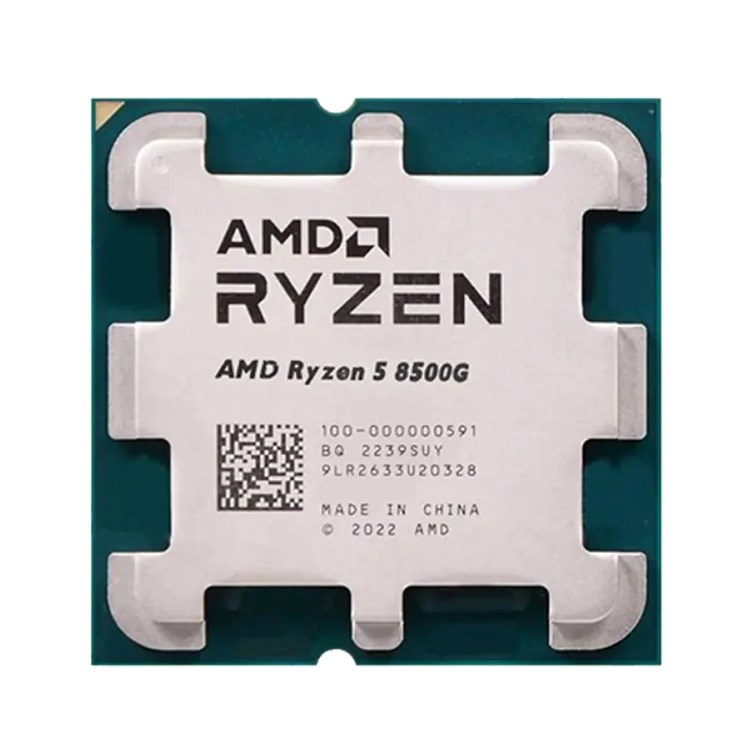

AMD Ryzen 5 8500G 3.5GHz AM5 65W Fansız İşlemci (TRAY)

General Specifications

Name : AMD Ryzen™ 5 8500G

Family : Ryzen

Series : Ryzen 8000 Series

Form Factor : Desktops

AMD PRO Technologies : No

Regional Availability : Global

Former Codename : Phoenix

Processor Architecture : 2x Zen 4 , 4x Zen 4c

# of CPU Cores : 6

Multithreading (SMT) : Yes

# of Threads : 12

Max. Boost Clock  : Up to 5 GHz

Max Zen4c Clock  : Up to 3.7 GHz

Base Clock  : 3.5 GHz

Zen4 Base Clock : 4.1 GHz

Zen4c Base Clock : 3.3 GHz

L2 Cache : 6 MB

L3 Cache : 16 MB

Default TDP : 65W

AMD Configurable TDP (cTDP) : 45-65W

Processor Technology for CPU Cores : TSMC 4nm FinFET

CPU Compute Die (CCD) Size : 137mm²

AMD EXPO™ Memory Overclocking Technology : Yes

Precision Boost Overdrive : Yes

Curve Optimizer Voltage Offsets : Yes

AMD Ryzen™ Master Support : Yes

CPU Socket : AM5

Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax) : 95°C

*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps) : 2

Native USB 3.2 Gen 2 (10Gbps) : 2

Native USB 2.0 (480Mbps) : 1

PCI Express® Version : PCIe® 4.0

Native PCIe® Lanes (Total/Usable) : 14 , 10

NVMe Support :  Boot , RAID0 , RAID1

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 256 GB

System Memory Subtype  : UDIMM

Max Memory Speed

2x1R DDR5-5200

2x2R DDR5-5200

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support : Yes (Requires platform support)

Graphics Capabilities

Graphics Model : AMD Radeon™ 740M

Graphics Core Count : 4

Graphics Frequency : 2800 MHz

DirectX® Version : 12

DisplayPort™ Version : 2.1

DisplayPort Extensions : Adaptive-Sync , HDR Metadata , UHBR10

DisplayPort Max Refresh Rates (SDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

HDMI® Version : 2.1

HDCP Version Supported : :2.3

USB Type-C® DisplayPort™ Alternate Mode : Yes

Multi-Monitor Support : Yes

Max Displays : 4

AMD FreeSync™ : Yes

Wireless Display : Miracast

Max Video Encode Bandwidth (SDR) : 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth : 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory : Available

AI Engine Capabilities

AMD Ryzen™ AI : Not Available

Product IDs

Product ID Tray : 100-000001491 , 100-000000931
