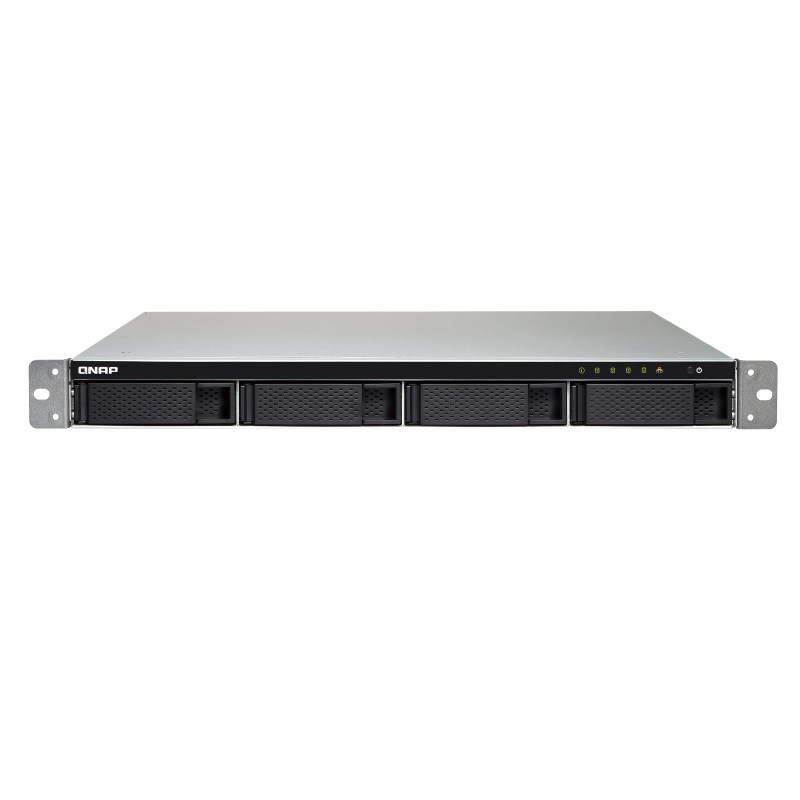

QNAP TS-453BU-RP 4 x SATA3 4xUSB3.0/4xGLAN RackMount NAS Depolama Ünitesi

CPU

Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz)

CPU Architecture

64-bit x86

Graphic Processors

Intel® HD Graphics 500

Floating Point Unit

Encryption Engine

 (AES-NI)

System Memory

4GB DDR3L (2 x 2 GB)

Maximum Memory

8 GB (2 x 4GB)

Memory Slot

2 x SODIMM DDR3L

When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.

Flash Memory

4GB (Dual boot OS protection)

Drive Bay

4 x 3.5-inch

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

M.2 SSD Slot

Optional via a PCIe adapter

SSD Cache Acceleration Support

Drive bays 1 to 2

Gigabit Ethernet Port (RJ45)

4

Jumbo Frame

PCIe Slot

1
Slot 1: PCIe Gen 2 x2

USB 3.0 port

4

USB 3.1 Gen 2 (10Gbps) Port

Optional via a PCIe adapter

HDMI Output

1, HDMI 1.4b

Form Factor

1U Rack Mount

LED Indicators

HDD 1-4, Status, LAN, Expansion, Power

Buttons

Power, Reset

Dimensions (HxWxD)

44 × 439 × 499 mm

Weight (Net)

8.16 kg

Weight (Gross)

11.1 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Relative Humidity

5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz

Power Consumption: HDD Sleep Mode

35.4 W

Power Consumption: Operating Mode, Typical

46.3 W

With drives fully populated

Fan

2 x 40mm, 12V DC

Sound Level

36.8 db(A)

System Warning

Buzzer
